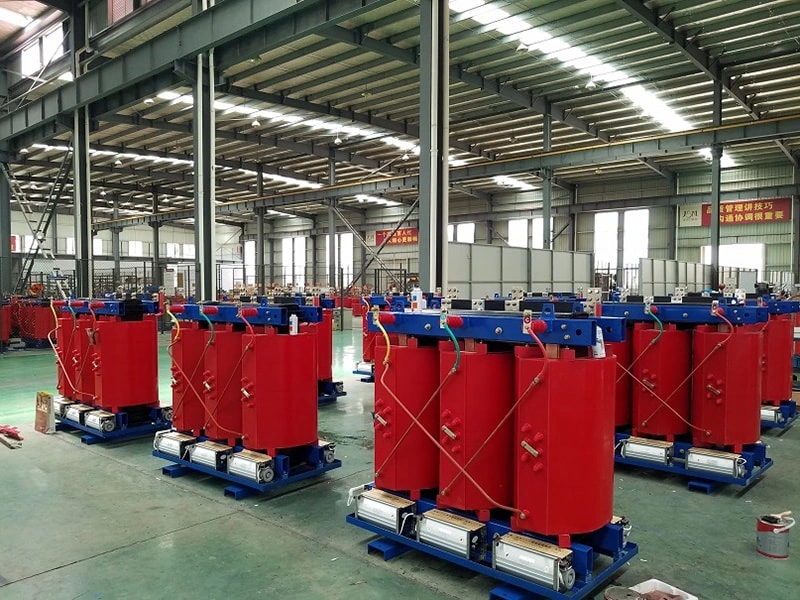

A dry-type transformer is a transformer whose core and windings are not immersed in insulating oil. Its high- and low-voltage windings are made of copper strip (foil) and then cast with epoxy resin in a vacuum and cured, forming a high-strength solid insulation structure. As a core piece of equipment in modern electrical systems, dry-type transformers are widely used in high-rise buildings, airports, subways, data centers, and industrial parks—places with strict fire and explosion protection requirements—due to their safety, environmental friendliness, and maintenance-free characteristics.
Compared to traditional oil-immersed transformers, dry-type transformers have the following revolutionary advantages:
* **Fire Safety:** Utilizing flame-retardant, fire-resistant, and self-extinguishing epoxy resin solid insulation materials, the completely oil-free design eliminates the risk of insulating oil leakage and fire.
Environmentally Friendly and Clean:** The insulation materials used are easily recyclable, pollution-free, and can be directly installed at the load center.
Maintenance-Free Operation:** No need for regular replacement of insulating oil, significantly reducing subsequent operation and maintenance costs and labor input.
High Efficiency and Energy Saving: Utilizing high-permeability, high-quality silicon steel sheets and advanced winding technology, no-load and load losses are significantly reduced, achieving an operating efficiency of over 99.5%.
Strong Adaptability: Can operate normally in 100% humidity environments, and can be restarted without pre-drying after shutdown. It also possesses excellent short-circuit and overload resistance.
Quiet Operation and Low Noise: Through advanced core structure and casting technology, operating noise is effectively reduced, meeting the quiet requirements of sensitive urban areas.
Haiyifeng Transformer: Your Reliable Partner for Dry-Type Transformers
With years of deep cultivation and accumulation in the power equipment field, Haiyifeng focuses on the research, development, manufacturing, and sales of high-quality dry-type transformers. We deeply understand the extreme requirements of power systems for safety and stability. Therefore, Haiyifeng's dry-type transformer series products strictly adopt epoxy resin vacuum casting technology to ensure no air bubbles inside the coils and low partial discharge values, thereby guaranteeing the products' outstanding characteristics such as excellent electrical performance, strong resistance to lightning strikes, strong short-circuit resistance, small size, and light weight.
To meet the power distribution needs of various application scenarios, Haiyifeng offers a comprehensive product portfolio:
SC(B) Series Resin-Insulated Dry-Type Transformers: The core utilizes high-permeability, high-quality grain-oriented cold-rolled silicon steel sheets with a 45° fully oblique step joint structure, significantly reducing no-load losses, current, and noise. Suitable for important locations such as high-rise buildings, airports, and power plants.
Epoxy Resin Cast Dry-Type Power Transformers: High and low voltage windings are wound with copper strip (foil), then cast with epoxy resin in a vacuum and cured, forming a high-strength fiberglass structure. Insulation classes cover F and H.

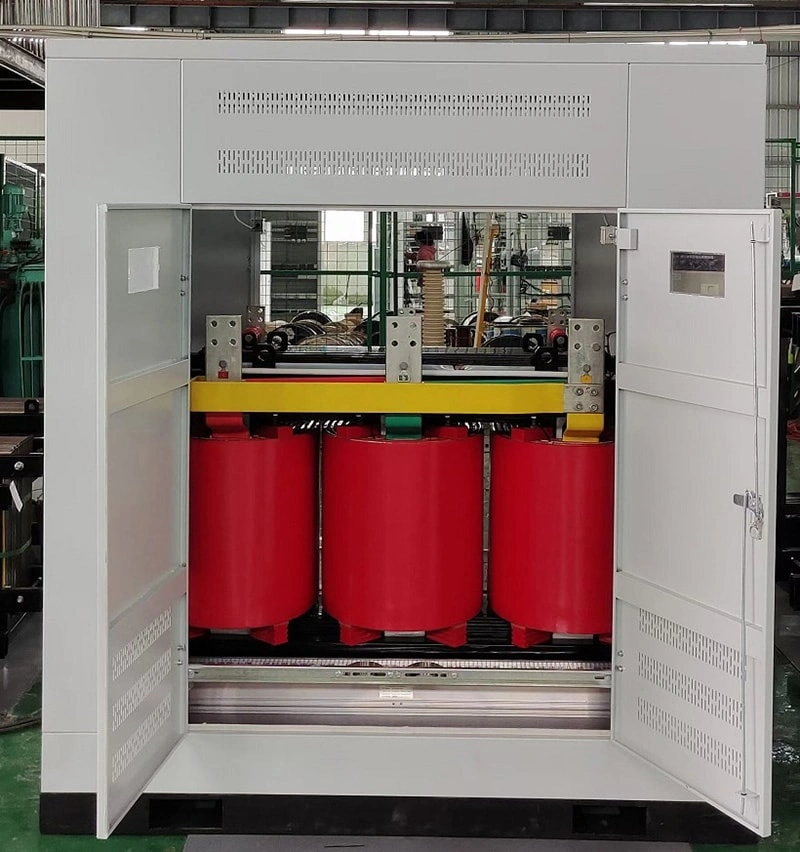

Integrated Solution with Shell and Temperature Control System: Products can be equipped with a temperature display controller to monitor and control the winding operating temperature in real time. It features over-temperature alarms and automatic tripping functions, ensuring long-term stable operation of the transformer under safe conditions.
Haiyifeng is committed to providing global customers with one-stop services from technical consultation and solution design to product delivery. With strict quality control and precise response to customer needs, our products have been exported to overseas markets such as Japan and the United States.
Why Choose Haiyifeng as Your Dry-Type Transformer Partner
Core Technology: Utilizing advanced epoxy resin vacuum casting technology, ensuring high insulation strength and heat resistance, low partial discharge value, and reliable operation.
Strict Quality Control: From raw materials to finished products, every transformer undergoes rigorous factory testing to ensure performance indicators meet or exceed international/domestic standards such as IEC and GB.
Professional Team: An experienced engineering team can provide customized design solutions based on the actual load requirements of projects, optimizing the layout of power distribution systems.
Global Service: Possessing mature export experience and excellent logistics coordination capabilities, providing reliable delivery guarantees for global partners.
Full-Process Support: Providing full-cycle services from technology selection and product customization to after-sales operation and maintenance, supporting OEM/ODM cooperation models.
Conclusion: Dry-Type Transformers – The Future Choice for Green Power Distribution
Against the backdrop of continuously growing global electricity demand, grid modernization, and accelerated grid integration of renewable energy, dry-type transformers, with their superior safety performance, environmental advantages, and high energy efficiency, are gradually becoming the mainstream choice for power distribution equipment. According to authoritative forecasts, the global dry-type transformer market is projected to grow from US$7.18 billion in 2026 to US$12.15 billion in 2034, representing a CAGR of 6.80%-34%.
Haiyifeng will continue to be driven by technological innovation, committed to providing safe, reliable, efficient, and environmentally friendly dry-type transformer products to safeguard the power systems of customers worldwide. Whether it's urban commercial complexes, high-end manufacturing plants, or new energy power generation projects, choosing Haiyifeng means choosing a safer, smarter, and greener power distribution solution.
