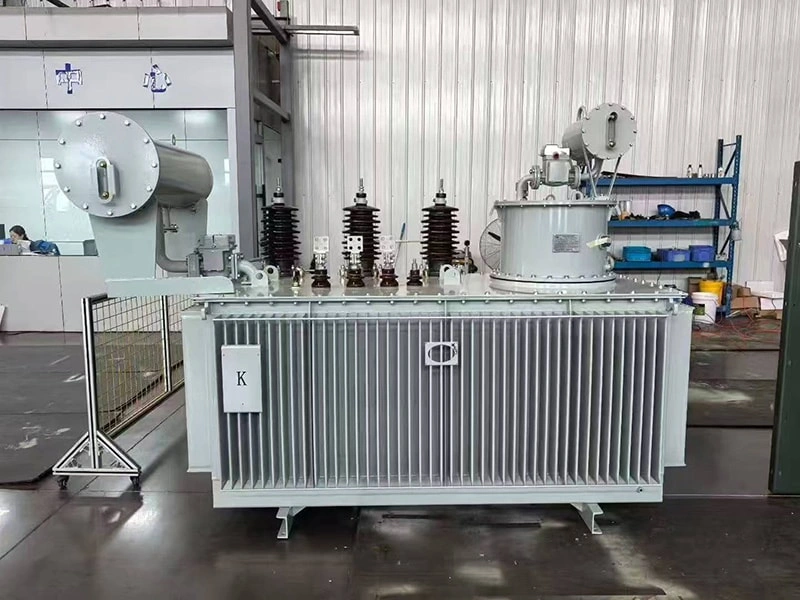

What is an Oil-Immersed Transformer?
An oil-immersed transformer is a type of electrical transformer where the core and windings are submerged in insulating oil. This oil serves dual purposes: electrical insulation and heat dissipation. As one of the most reliable and widely deployed transformer technologies in heavy-duty power distribution, oil-immersed transformers are the backbone of industrial plants, commercial complexes, power substations, and renewable energy projects.
Today, oil-immersed transformers play an indispensable role in stepping up or stepping down voltage levels for factories, mining operations, high-rise buildings, and utility grids. They are particularly valued for their high overload capacity, long service life, and ability to operate under harsh environmental conditions.
Advantages of Oil-Immersed Transformers
Modern electrical infrastructure relies on oil-immersed transformers for several critical reasons:
High Overload Capacity: Superior heat dissipation via insulating oil allows for short-term overload operation without damage — ideal for industrial power fluctuations.
Durability & Long Life: Robust construction with high-grade materials ensures 20–30 years of reliable service, even in dusty, humid, or temperature-extreme environments.
Excellent Cooling Efficiency: Natural or forced oil circulation systems maintain optimal operating temperatures, reducing energy losses.
Cost-Effectiveness: Lower manufacturing and lifecycle costs compared to dry-type transformers for high-voltage, high-capacity applications.
Safety & Reliability: Sealed tank design prevents moisture ingress; optional explosion-proof and flame-retardant features available for high-risk zones.
Easy Maintenance: Oil sampling and testing allow straightforward condition monitoring without full disassembly.
Haiyifeng’s Oil-Immersed Transformer Capabilities & Global Applications
At Haiyifeng, we deliver end-to-end oil-immersed transformer solutions tailored to the rigorous demands of industrial and utility clients worldwide. With over 18 years of specialized experience, we focus on the design, manufacturing, and export of high-performance transformers — ranging from distribution transformers (10kV–35kV) to power transformers (up to 110kV) and mining-duty units.
Our integrated services include technical consulting, core material selection (high-permeability silicon steel, oxygen-free copper windings), precision manufacturing, and global logistics coordination. Every transformer is factory-tested under full-load conditions to ensure compliance with IEC, ANSI, or GB standards before shipment.
Typical applications include:
Factory and warehouse power distribution
Commercial building substations
Solar and wind farm step-up stations
Mining and tunneling operations
Municipal water treatment plants
Emergency backup systems for data centers
Why Choose Haiyifeng as Your Oil-Immersed Transformer Partner

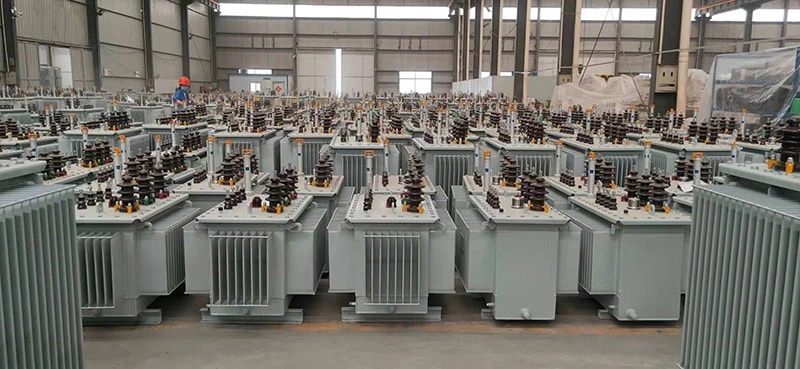

In-house manufacturing with strict quality control — from core stacking to final oil filling
Advanced production lines for both radial and axial cooling duct designs
Professional engineering team offering custom voltage ratios, tap changers, and enclosure types (tank or compartment)
Proven export experience to over 30 countries across Southeast Asia, Africa, and the Middle East
OEM / ODM support for private labeling and turnkey substation projects
Fast lead times with ready stock of standard models (50kVA–3150kVA)
Whether you are electrifying a new factory or upgrading a power grid in Nigeria, Haiyifeng is your reliable partner for efficient, durable, and cost-effective oil-immersed transformer solutions.
