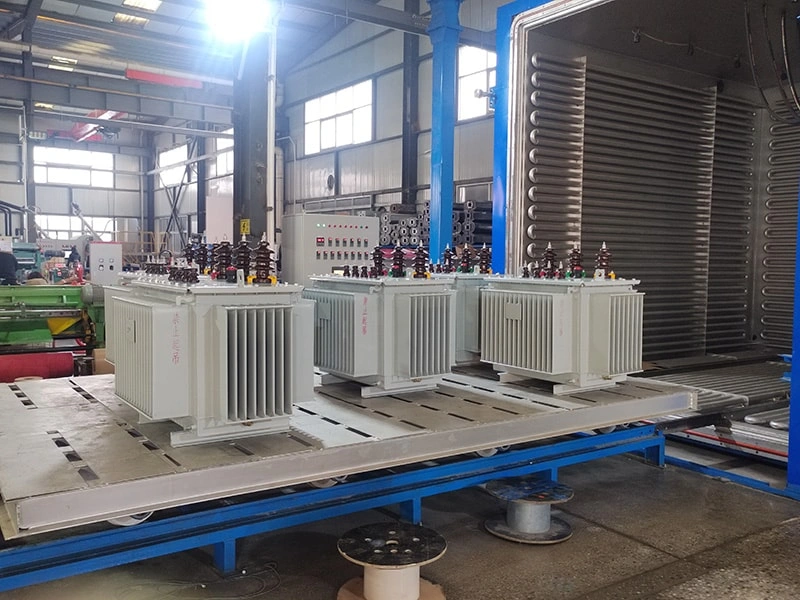

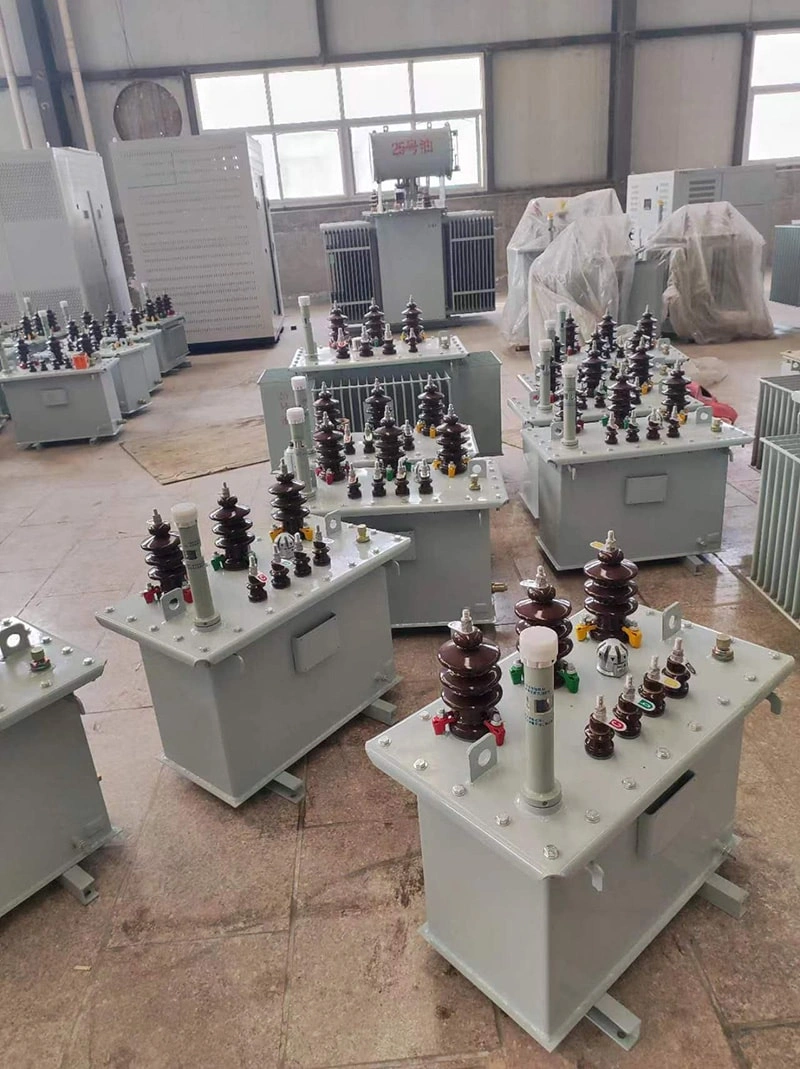

Exploring the disruptive advantages of Haiyifeng transformer's 3D wound core oil-immersed transformers in power distribution. As a national-level manufacturing single-item champion enterprise, Haiyifeng transformer's with its unique amorphous alloy 3D wound core and other energy-saving core technologies, provides power systems with superior cooling efficiency, stronger insulation protection, and sustainable energy transmission solutions.
Introduction: Technology as the Foundation, Energy Efficiency as King
Driven by the global goals of "carbon peaking" and "carbon neutrality," modern power distribution places almost stringent demands on transformer products in terms of energy efficiency and stability. Haiyifeng transformer's a benchmark enterprise rooted in the Cuishanhu High-tech Zone of Kaiping, Jiangmen, known as the "Capital of Overseas Chinese," has been deeply involved in 3D wound core technology for nearly two decades. It has not only reshaped the competitive landscape of the global transformer industry but also, through a dual-drive approach of "craftsmanship + technological breakthroughs," has made "Made in China" a world-renowned name card for high-end energy-saving equipment. This article will delve into how Haiyifeng transformer's 3D wound core oil-immersed transformer, thanks to its cutting-edge technology, has become an indispensable cornerstone product in the power, industrial, and new energy sectors.
Core Advantage: Generational Leadership Brought by Technological Breakthroughs
Haiyifeng oil-immersed transformers maintain their industry advantage due to numerous revolutionary innovations in core materials and structures, particularly the deep integration of 3D wound core technology and new material applications.
Superior Energy-Saving Performance and Revolutionary Upgrade of Traditional Advantages with 3D Wound Cores
Compared to traditional oil-immersed transformers,Haiyifeng oil-immersed transformers most core advantage lies in its unique 3D wound core structure. While traditional oil-immersed transformers rely on the excellent thermal conductivity of oil to ensure basic stable insulation and overload protection, they face bottlenecks in magnetic circuit optimization. Haiyifeng oil-immersed transformers achieves a completely symmetrical and seamless connection of the three-phase magnetic circuit by designing the transformer core in a 3D equilateral triangular arrangement; continuous winding significantly reduces magnetic resistance, and combined with low-loss amorphous alloy materials, this results in a stunning energy-saving effect in the finished product.
Surpassing Traditional Standards in Short-Circuit Resistance and Insulation Capabilities
Traditional oil-immersed transformers have limited ability to withstand high-current surges under abnormal circuit conditions (such as sudden short circuits). Haiyifeng oil-immersed transformers, due to their unique core and coil structure, inherently possess extremely strong dynamic and thermal stability, significantly improving their short-circuit resistance. Combined with the high dielectric strength of the transformer oil and a fully sealed tank process, the equipment excels in moisture isolation, contamination prevention, and dampness protection, making it particularly suitable for harsh outdoor environments. This characteristic greatly reduces the risk of system interruptions caused by equipment flashover or foreign object intrusion.
Superior Adaptability to Fluctuating Loads
As is well known, the viscosity and heat dissipation characteristics of oil-immersed transformer oil directly affect the transformer's lifespan (following the classic 10℃ aging rule). Haiyifeng Electric's oil-immersed transformers, with their scientific oil channel design and efficient heat sink layout, efficiently transfer conductor heat to the outer casing for dissipation through the transformer oil. Meanwhile, the innovative core suspension structure and special annealing process adopted by the product not only result in operating noise far below the national standard limit, but also bring a qualitative leap in effectively suppressing third harmonics and coping with the intermittent grid connection impact of new energy sources, maintaining operational stability for a longer period.
Domain Empowerment: Full Coverage of Diverse Application Scenarios
Positioned among the world's leading companies, Haiyifeng Electric's oil-immersed transformersproduct matrix comprehensively serves multiple sectors of core social infrastructure:
Power Generation and Transmission/Distribution: Haiyifeng oil-immersed transformers in collaboration with Huazhong University of Science and Technology, North China Electric Power University, and other universities and institutions, successfully developed the world's first 110kV energy-saving amorphous alloy three-dimensional wound core oil-immersed power transformer, a milestone achievement. The equipment's no-load loss is reduced by more than 60% compared to the Level 1 energy efficiency limit in GB 20052-2024, and load loss is reduced by more than 5%.
Industrial Production and Environmental Tolerance: Haiyifeng Electric's fully sealed oil-immersed transformers exhibit exceptional adaptability to industrial production environments. Their corrosion- and rust-resistant structure is particularly suitable for coastal wind power areas exposed to salt spray and sandstorms, or heavy industrial plants with high dust levels.
Renewable Energy and Energy Storage System Integration: Facing the unstable input characteristics of solar and wind power, Haiyifeng Electric's oil-immersed transformers significantly improve the efficiency of green electricity utilization due to their low no-load loss and high shock resistance reliability. In new energy storage power stations and pumped storage projects, its equipment has become a "stabilizer" for power balance regulation.
A New Path to Environmental Protection: From Mineral Oil to Sustainable Ecology
In addition to meeting the stringent requirements of the green electricity era, Haiyifeng Electric actively leads the green transformation of power distribution equipment.
Selection of High-Quality Insulating Fluids: The company adheres to the applicable scope of current national standards such as GB/T 1094 to ensure that its oil-immersed transformers are compatible with high-quality mineral oils with stable performance and even high-flash-point natural ester vegetable oils. This type of environmentally friendly insulating fluid has an extremely high biodegradability rate, greatly reducing ecological pollution caused by accidental leaks. Its auto-ignition temperature is far higher than mineral oil (approaching 300℃), improving the fire safety level of equipment in urban core areas or densely populated locations.
Full Life Cycle Recycling System: Haiyifeng oil-immersed transformers not only focuses on quality control during the product manufacturing process but also aligns with the current considerations of power grids and large users regarding the full life cycle cost in procurement. It supports the responsible dismantling and disposal of obsolete equipment, realizing the recycling and reuse of metal materials, insulating oil, and other resources, meeting the procurement standards of a circular economy and green supply chain.
Future Outlook: The global oil-immersed distribution transformer market continues its rapid growth, and is expected to reach a scale of tens of billions of US dollars by 2032. Driven by new demands from high-performance AI data centers, deep-sea wind power, and complex rail transit power collection systems, oil-immersed transformers are moving towards higher energy efficiency, intelligence, and maintenance-free operation.
Haiyifeng Electric has taken the lead by introducing "primary and secondary fusion technology" on the basis of its three-dimensional wound core structure. This technology deeply integrates various sensing units such as electrical, oil temperature, pressure, and vibration sensors with intelligent terminals with edge computing capabilities, enabling real-time online monitoring and pre-diagnosis of transformer status and providing a solid physical foundation for digital power grids.
