In modern power distribution systems, choosing the right transformer is essential for ensuring energy efficiency, operational safety, and long-term reliability. Among the most widely used transformer types in industrial applications are the oil immersed transformer and the dry type transformer. Each has its own advantages, disadvantages, and ideal application environments.
For industrial plants, renewable energy projects, substations, mining operations, and manufacturing facilities, selecting the proper transformer directly affects operating costs and system performance. This article compares the oil immersed transformer and dry type transformer in terms of cooling performance, efficiency, maintenance, safety, lifespan, and industrial applications.
As a professional manufacturer, Qingdao Haiyifeng Industry and Trade specializes in the production and supply of high-quality oil filled transformer and power distribution equipment for global industrial customers.

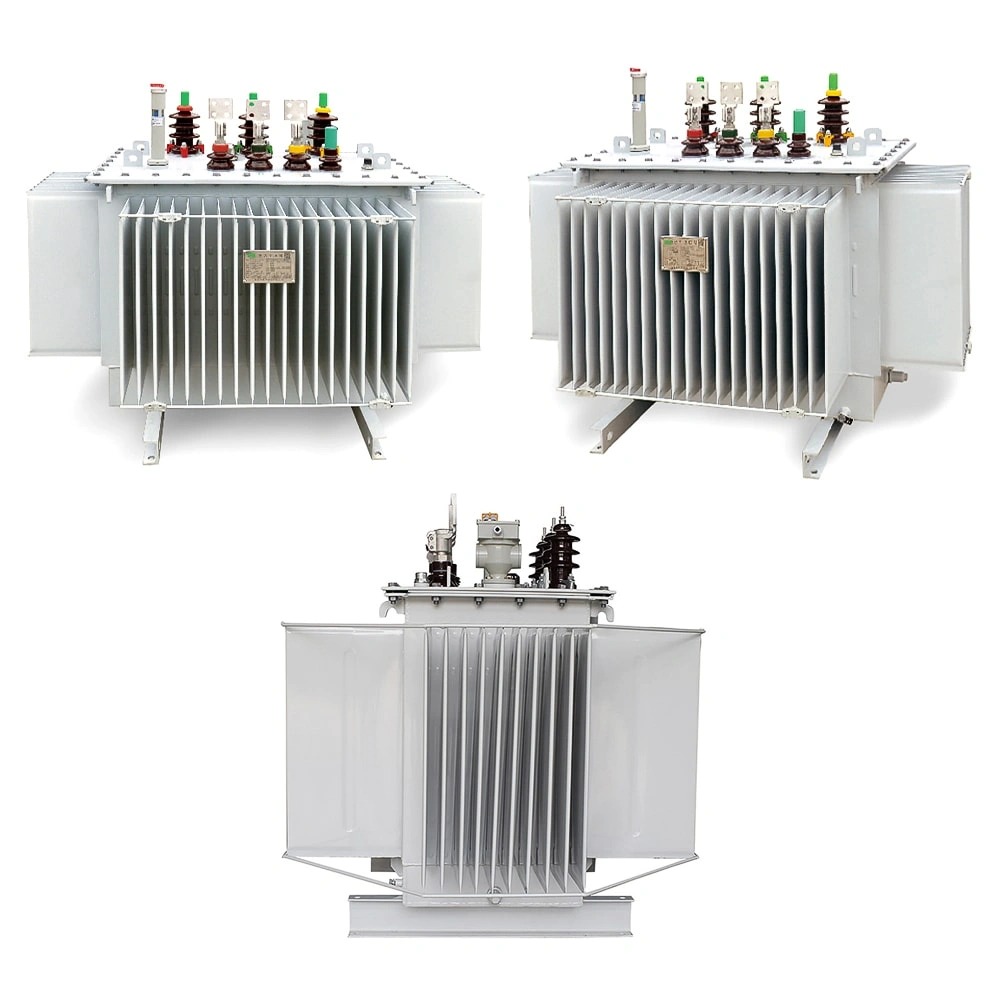

What Is an Oil Immersed Transformer?
An oil immersed transformer, also known as an oil filled transformer, is a transformer that uses insulating oil for cooling and electrical insulation. The transformer core and windings are fully immersed in transformer oil, which helps dissipate heat generated during operation.The oil serves two important purposes:
• Cooling the transformer windings and core
• Providing electrical insulation between components
Because of their excellent heat dissipation capability, oil immersed transformers are widely used in medium and high-voltage power distribution systems.At Qingdao Haiyifeng Industry and Trade, oil immersed transformers are manufactured using advanced production technology, high-quality silicon steel cores, and reliable insulation systems to ensure stable operation and long service life.

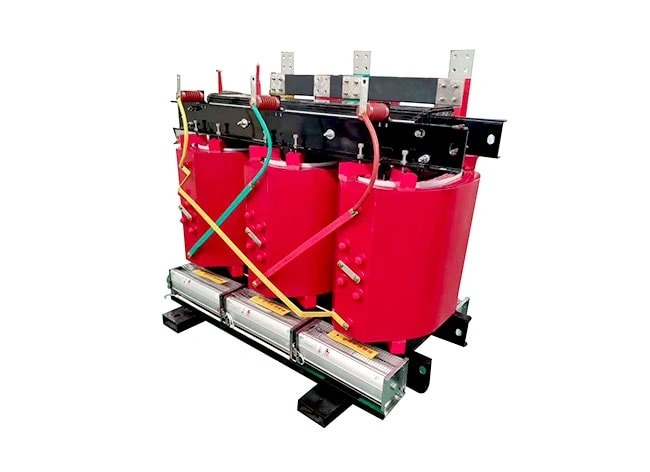

What Is a Dry Type Transformer?
A dry type transformer uses air instead of oil as the cooling medium. The transformer windings are insulated with resin or vacuum pressure impregnated materials, making the transformer safer for indoor installations.
Dry type transformers are commonly used in:
• Commercial buildings
• Hospitals
• Airports
• Data centers
• Residential complexes
Because they do not contain flammable oil, dry type transformers are considered safer in enclosed indoor environments.
However, compared with an oil immersed transformer, dry type transformers generally have lower cooling efficiency and reduced overload capacity.
How Does an Oil Filled Transformer Work?An oil filled transformer works by transferring electrical energy between circuits through electromagnetic induction while using transformer oil to remove heat generated during operation.The basic working process includes:
1. Electrical power enters the primary winding
2. A magnetic field is generated in the transformer core
3. Voltage is induced into the secondary winding
4. Transformer oil absorbs and transfers heat away from the windings
5. Heat is dissipated through radiators or cooling fins
This efficient cooling process allows the oil immersed transformer to maintain lower operating temperatures and higher energy efficiency.
Oil Immersed Transformer vs Dry Type Transformer
1. Cooling Performance
Cooling performance is one of the biggest differences between these two transformer types.
An oil immersed transformer uses insulating oil with excellent thermal conductivity, allowing heat to be removed quickly and efficiently. This makes oil filled transformers suitable for heavy industrial loads and continuous operation.
Dry type transformers rely on air cooling, which is less effective in high-load environments.
2. Energy Efficiency
Energy efficiency is critical for industrial applications where transformers operate continuously for long periods.
An oil filled transformer typically offers:
• Lower copper losses
• Better thermal stability
• Higher operating efficiency
• Reduced energy consumption
Because the transformer oil cools the windings effectively, electrical resistance remains lower during operation.For factories, power plants, and renewable energy projects, choosing a high-efficiency oil immersed transformer can significantly reduce electricity costs over time.
3. Installation Environment
Dry type transformers are often preferred for indoor environments due to their lower fire risk and compact design.
However, for outdoor industrial installations, oil immersed transformers are usually the better choice because they provide superior cooling and weather resistance.
Typical Applications
Oil Immersed Transformer Applications
• Utility substations
• Manufacturing plants
• Solar farms
• Wind power projects
• Mining operations
• Steel plants
• Heavy industrial facilities
Dry Type Transformer Applications
• Office buildings
• Hospitals
• Shopping malls
• Data centers
• Airports
4. Maintenance Requirements
Maintenance is another important factor when comparing transformer types.
An oil immersed transformer requires regular inspection and oil testing to ensure optimal performance.
Typical maintenance includes:
• Dissolved Gas Analysis (DGA)
• Oil filtration
• Moisture testing
• Leakage inspection
• Temperature monitoring
Although maintenance requirements are higher, modern oil filled transformers manufactured by Qingdao Haiyifeng Industry and Trade are designed for long-term reliability and reduced maintenance costs.
Dry type transformers generally require less maintenance because they do not use insulating oil.
5. Service Life
The lifespan of a transformer depends heavily on operating temperature and insulation quality.
Because transformer oil provides superior cooling, an oil immersed transformer usually has a longer service life than a dry type transformer.
Under proper maintenance conditions, many oil filled transformers can operate reliably for 25 to 40 years.
This long lifespan makes them highly cost-effective for industrial and utility projects.
6. Initial Investment Cost
For the same power rating, an oil immersed transformer is generally more affordable than a dry type transformer.
Dry type transformers often require more expensive insulation materials and cooling systems, increasing manufacturing costs.
Therefore, for large industrial power distribution systems, oil filled transformers are usually the more economical choice.
Advantages of Oil Immersed Transformers
There are several reasons why industrial customers prefer oil immersed transformers.
Excellent Cooling Efficiency
Transformer oil effectively removes heat and improves operating stability.
Higher Load Capacity
Oil immersed transformers can handle higher loads and temporary overload conditions.
Longer Lifespan
Lower operating temperatures help protect insulation materials and extend transformer life.
Better Energy Efficiency
Reduced energy loss lowers long-term operating costs.
Lower Noise Levels
Transformer oil helps reduce operational noise.
Lower Cost for High-Capacity Systems
For medium and large power ratings, oil filled transformers are more cost-effective.
Disadvantages of Oil Filled Transformers
Although oil immersed transformers offer many benefits, they also have some limitations.
Oil Leakage Risk
Improper sealing or aging components may cause oil leakage.
Fire Safety Concerns
Mineral oil is flammable and requires proper safety protection.
Maintenance Requirements
Regular oil testing and inspections are necessary.
However, with modern manufacturing technology and strict quality control from Qingdao Haiyifeng Industry and Trade, these risks can be significantly minimized.
Why Industrial Projects Prefer Oil Immersed Transformers ？
Most industrial facilities require transformers capable of handling:
• Heavy loads
• Continuous operation
• Harsh environments
• Outdoor installation
• High energy efficiency
Because of these requirements, the oil immersed transformer remains the preferred solution for industrial power distribution systems worldwide.
Industries such as mining, metallurgy, renewable energy, petrochemical processing, and infrastructure development rely heavily on oil filled transformers due to their reliability and cost performance.
Why Choose Qingdao Haiyifeng Industry and Trade?
Qingdao Haiyifeng Industry and Trade is a professional manufacturer and supplier of high-quality oil immersed transformer and oil filled transformer products for industrial and utility applications.
The company provides:
• Distribution transformers
• Power transformers
• Customized transformer solutions
• High-efficiency transformer systems
• Reliable after-sales technical support
With strict quality management and advanced manufacturing equipment, Qingdao Haiyifeng Industry and Trade delivers transformer products that meet international industrial standards and customer requirements.
Frequently Asked Questions
Which transformer is better for industrial applications?
For most heavy industrial applications, an oil immersed transformer is the better choice because of its superior cooling performance, higher efficiency, and longer service life.
Are oil filled transformers more efficient?
Yes. Oil filled transformers usually provide higher efficiency because transformer oil improves heat dissipation and reduces energy losses.
Which transformer lasts longer?
An oil immersed transformer generally lasts longer due to lower operating temperatures and better insulation protection.
Are dry type transformers safer?
Dry type transformers are safer for indoor installations because they do not contain flammable oil.
Why are oil immersed transformers widely used in substations?
Because they offer:
• High overload capability
• Excellent cooling performance
• Reliable outdoor operation
• Lower cost for large capacities
Conclusion
Both oil immersed transformers and dry type transformers play important roles in modern power distribution systems. However, for industrial applications requiring high efficiency, large load capacity, and long operating life, the oil immersed transformer remains the preferred solution.
Compared with dry type transformers, an oil filled transformer provides:
• Better cooling performance
• Higher energy efficiency
• Longer service life
• Lower cost for large-capacity applications
As a trusted manufacturer, Qingdao Haiyifeng Industry and Trade is committed to supplying reliable and high-performance transformer products for industrial customers worldwide. By combining advanced technology, strict quality control, and professional engineering support, the company continues to provide dependable oil immersed transformer solutions for global power distribution projects.
