S11-30 ~ 3150KVA/11KV series distribution transformers have remarkable energy-saving effect. They adopt new iron core materials, fully inclined three-seam structure and even magnetic circuit distribution, which greatly reduces no-load excitation current and no-load loss. S11 products, on the basis of S9 series, reduce no-load loss by 30% on average, reduce no-load current by 70%, and reduce noise by about 8 db.Install pressure release valve, signal thermometer, gas relay, etc. according to the standard requirements to ensure the safe operation of the transformer.It has the characteristics of reliable operation, small size, light weight, low noise, good technology, good heat dissipation, low temperature rise, no core structure, no pollution, no maintenance, high efficiency. 1. Standards: GB, IEC, GOST, EN, NF, ANSI/IEEE (customizable according to customer standards) 2. Certification: ISO、CE、IEC、SABS、COC、CSA、UL 3. Efficiency: The efficiency of an 11kV three-phase oil immersed transformer can exceed 99%, which can meet the European 2015/2014/548/EC ecodesign Tier 2 energy efficiency regulations. 4. Maintenance free: IP65 protection level, dustproof and moisture-proof, maintenance free, designed for a lifespan of over 25 years. 5. Environmental protection and sustainable development: FR3 vegetable oil can be selected. 6. Overload capacity: Copper coil 11kv transformer allows short-term overload to 150% of rated capacity for no more than 2 hours, but requires monitoring of oil temperature (≤ 95 ℃).
- Input voltage: 11kV
- Output voltage: 0.4kV 0.415 kv 0.420kv 0.430kv 0.440kv
- Capacity: 25-2500 kva（Up to 10MVA）
- Frequency: 50/60 HZ
- Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements
The core
The silicon steel sheet of iron core adopts high quality cold-rolled orientation 30Q120 or 30QG105 grade, full diagonal joint, step-type three-stage joint structure type, the side of iron core is coated with polyurethane adhesive, the upper and lower iron yoke is clamped with channel steel, and the upper and lower clamps are tightened with screw.
Coil
The wire is made of oxygen-free copper, the flat wire is zb-0.45, the round wire is QQ-2, the high-voltage coil is of layer type, the low-voltage coil can be divided into ≤500kVA as layer type and ≥ 630kVA as new spiral type according to the capacity.
Body insulation
In the iron core window, a 25mm thick laminated cardboard coil is added to the upper end of the coil, which not only strengthens the main insulation strength, but also improves the axial dynamic stability of the coil.

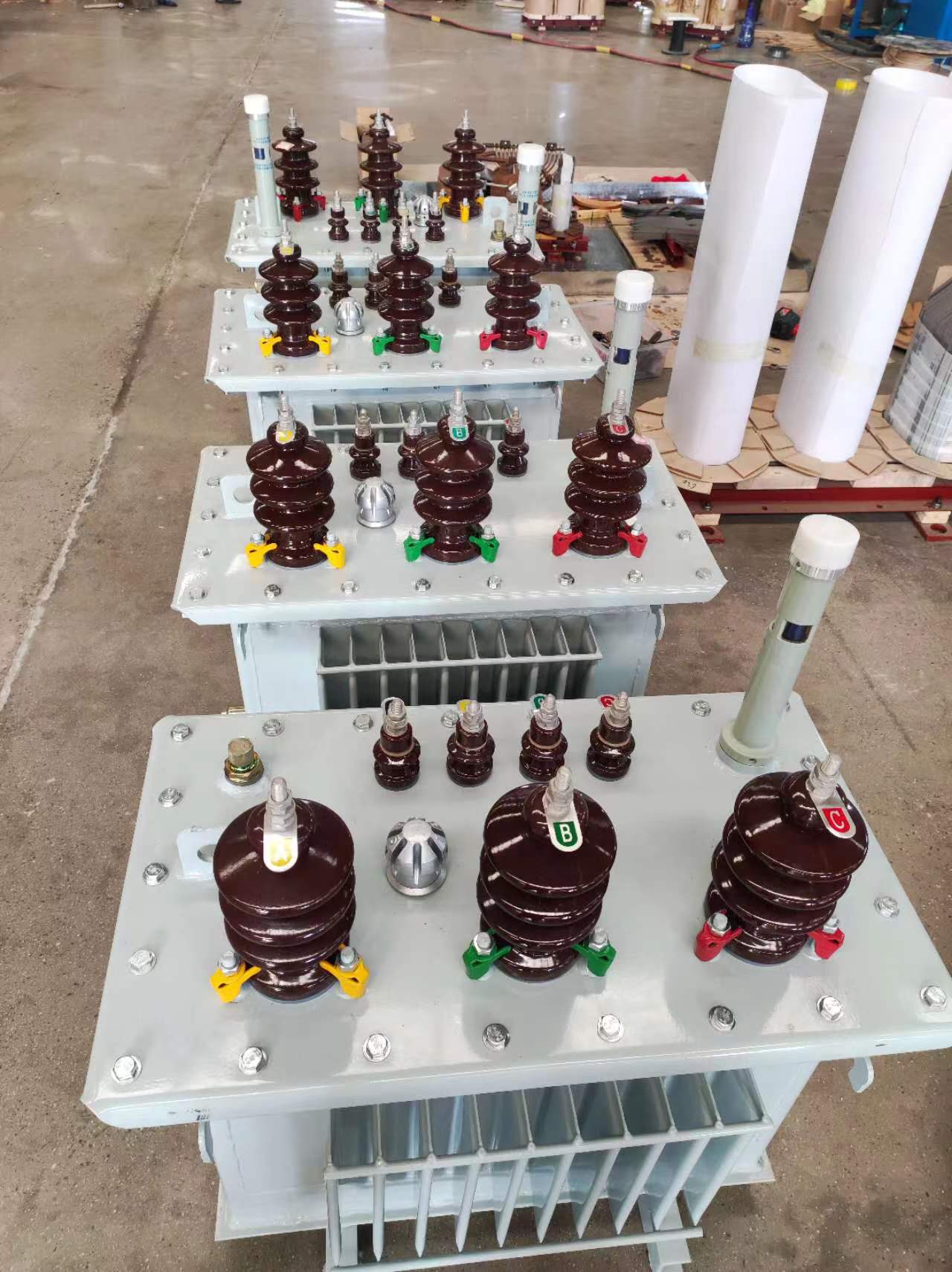

Lead
In principle, the improved strip type unexcited voltage regulating tap switch is adopted for the high voltage distribution line, and the strip type unexcited voltage regulating tap switch is adopted for the connection with small capacity and many connections.All high-voltage casings shall adopt cable-piercing type, low-voltage casings shall adopt compound type, and short tailings shall be adopted when the current is ≥1600A.

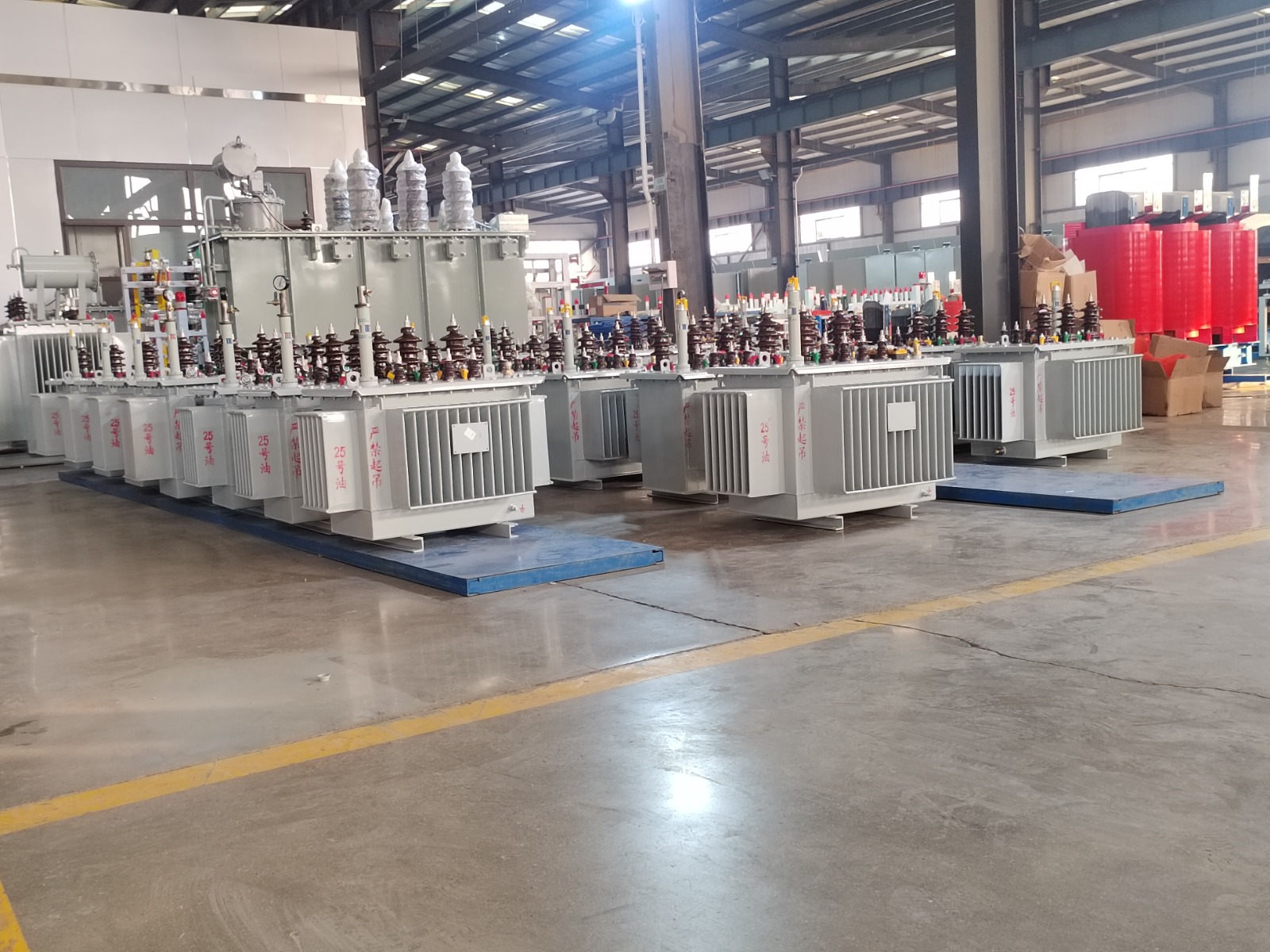

Fuel tank
Rectangular corrugated oil tank with 2000kVA and below, bucket tank with 2500kVA and above, radiator device with corrugated or chip radiator respectively, the inner and outer surface of three primers, one coat of finish painting, the product has anti-salt fog, anti-heat and humidity, anti-mildew, beautiful and generous durable, enhance operation reliability

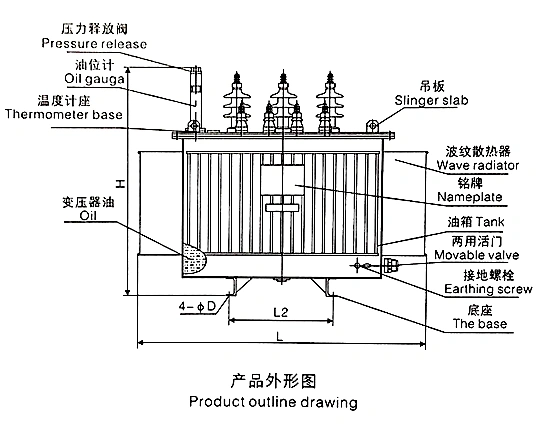

General assembly
Pressure release valve - open transformer capacity ≥315kVA installation, sealed transformers are installed.Gas relay - transformer capacity ≥800kVA gas relay installation.Temperature controller - transformer capacity ≥10O0kVA installation.Oil tank - open type transformers are installed, sealed transformers are not installed, add an oil level indicator on the oil tank cover.Tube type oil level meter - all sealed transformers without oil storage tank are installed, installed on the upper part of the transformer tank cover, showing the oil level in the tank.

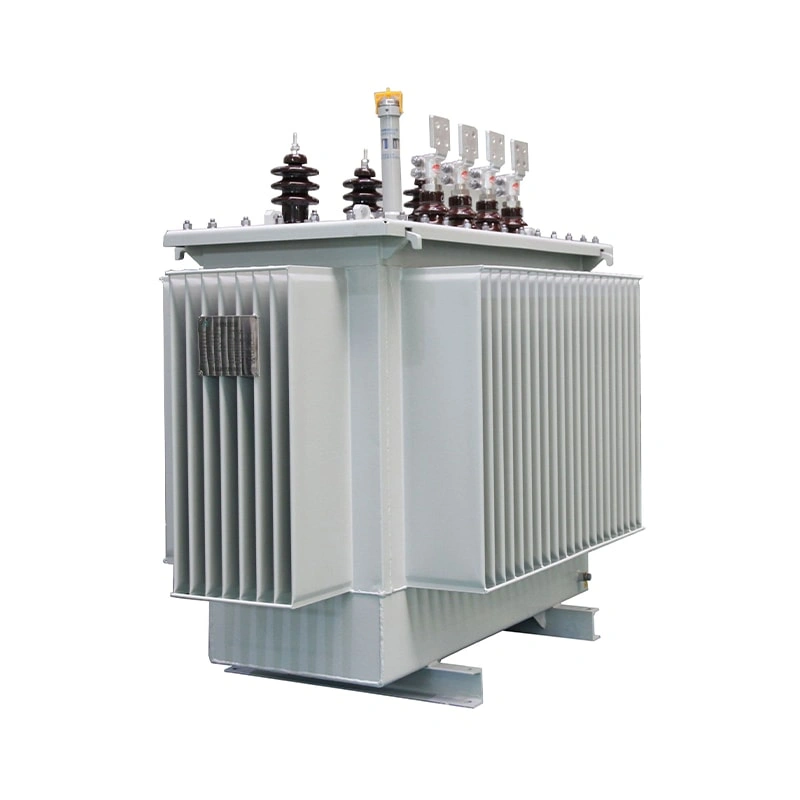

11kv transformer can be a three-phase oil immersed transformer, a column mounted three-phase oil immersed transformer, or a three-phase pad mounted transformer. These types of transformers have the same principle, but their structures are different, and different types of transformers have different applications. we are provides you with the most ideal solution.
11kV three-phase oil immersed transformer (rated voltage 6kV-35kV)
Install a three-phase oil immersed transformer (rated voltage 2.4kv-34.5kv) on an 11kV column
11kV three-phase pad mounted transformer (rated voltage 2.4kv-34.5kv)
Not exceeding 1000m above sea level;
Ambient temperature: -10℃~+40℃
Average temperature of hottest month: +30℃
Highest annual average temperature: +20℃
Daily temperature difference: 25℃
Seismic rift: 8 degrees
Relative humidity: 95% (+25℃)
-Stable foundation, horizontal installation, avoiding tilting;
-Reserve sufficient heat dissipation space (such as at least 1.5 meters away from the wall);
-Grounding resistance ≤ 4 Ω;
-Check the oil level, sealing, and cleanliness of the casing.
The customer shall provide the main operating parameters of the transformer: capacity, input voltage, output voltage grade, wiring group, etc
Other ordering requirements
As an enterprise specializing in transformer production for 20 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
Yes, each product comes with two year(Up to 5 years)warranty to ensure the correct use of the product by the customer.
11kV-220kV Oil-immersed Power Transformer, Dry-type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution Transformer, Pad-mounted Transformer.
Yes! Our products can be customized. We have design and engineering teams, and we can customize products according to customers' drawings or requirements.
1 set.
It depends on the quantity of your order. It usually takes 20-45 days.
