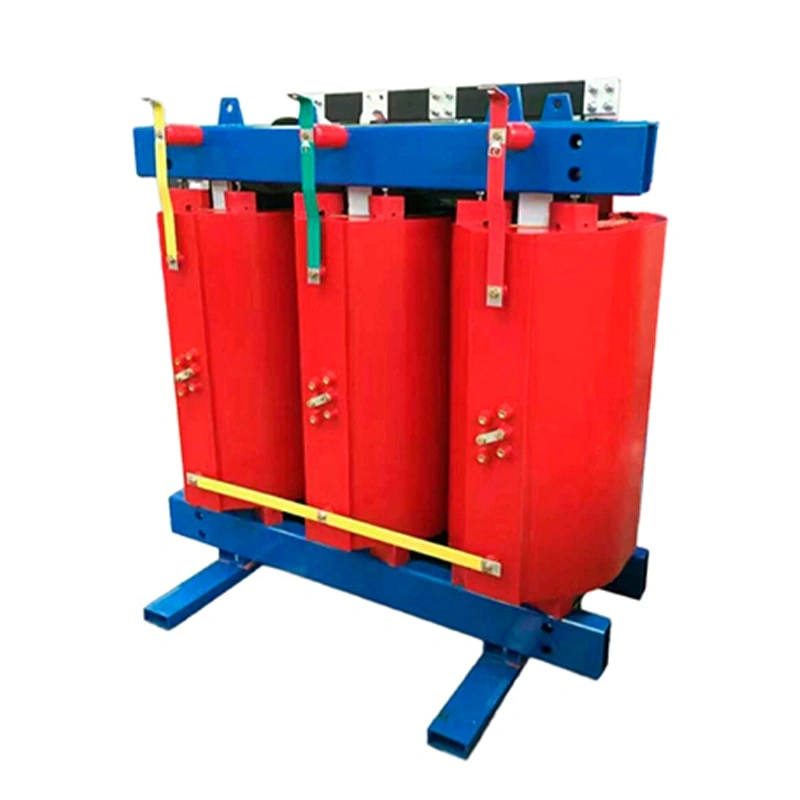

Dry-type transformer has the advantages of large short-circuit resistance, little maintenance work, high operation efficiency, small dimension and low noise, which is commonly used in places with high requirements of fireproof and explosion-proof. This type transformer is widely used in local lighting, high buildings, airports, docks, CNC machinery and others. Its cooling methods are divided into natural air cooling (AN) and forced air cooling (AF). The transformer can operate continuously for a long time under rated capacity under natural air cooling. Output capacity of the transformer can increase by 50% under forced air cooling. It is suitable for intermittent overload operation or emergency overload operation. Due to the load loss and impedance voltage increase significantly when overload, it is not suitable for long time continuous overload operation.
| Type | Rated Power [kVA] |
No-load Loss [kW] |
Load Loss [kW] |
short circuit impedance (%) |
|---|---|---|---|---|
| SCB12-315 | 315 | 0.71 | 3.47 | 4 |
| SCB12-400 | 400 | 0.79 | 3.99 | 4 |
| SCB12-500 | 500 | 0.93 | 4.88 | 4 |
| SCB12-630 | 630 | 1.07 | 5.88 | 4 |
| SCB12-630 | 630 | 1.04 | 5.96 | 6 |
| SCB12-800 | 800 | 1.22 | 6.96 | 6 |
| SCB12-1000 | 1000 | 1.42 | 8.13 | 6 |
| SCB12-1250 | 1250 | 1.67 | 9.69 | 6 |
| SCB12-1600 | 1600 | 1.96 | 11.73 | 6 |
| SCB12-2000 | 2000 | 2.44 | 14.45 | 6 |
| SCB12-2500 | 2500 | 2.88 | 17.17 | 6 |
Safe, fireproof and pollution-free;
Advanced technology, high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, high reliability and long service life;
Low loss, low noise, obvious energy-saving effect, maintenance-free;
Good heat dispersion and strong overload capacity. Forced air cooling can improve operation capacity;
Good moisture-proof performance, suitable for high-humidity and another harsh environment;
The dry-type transformer can be equipped with complete temperature detection and protection system. The intelligent signal temperature control system, with the function of alarm and circuit trip, can automatically detect and display the working temperature of the three-phase winding, automatically start and stop the fan.
Small dimension, light weight, small floor area and low installation cost.
The customer shall advise main operating parameters of the transformer: Transformer capacity，Type of transformer，Input voltage level, Output voltage level，Wiring group.
Other ordering requirements
As an enterprise specializing in transformer production for 20 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
Yes, each product comes with two year(Up to 5 years)warranty to ensure the correct use of the product by the customer.
11kV-220kV Oil-immersed Power Transformer, Dry-type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution Transformer, Pad-mounted Transformer.
Yes! Our products can be customized. We have design and engineering teams, and we can customize products according to customers' drawings or requirements.
1 set.
It depends on the quantity of your order. It usually takes 20-45 days.
We always adhere to technology as our guiding principle, upholding the spirit of "dedication, professionalism, and focus," to provide meticulously crafted tools and serve millions of users worldwide.
We have established a professional R&D team to continuously optimize our products, save energy, and adopt new manufacturing processes to tailor high-performance, cost-effective equipment for our customers.
We have more than 20 years to produce different kinds of transformers.
The factory's 6S management system improves efficiency, ensures quality, and safeguards the quality of the products the company outputs.
As a high-tech enterprise integrating R&D, production and sales, we ensure product quality while maximizing cost advantages for our customers.
We have a strong supply chain and after-sale service.
