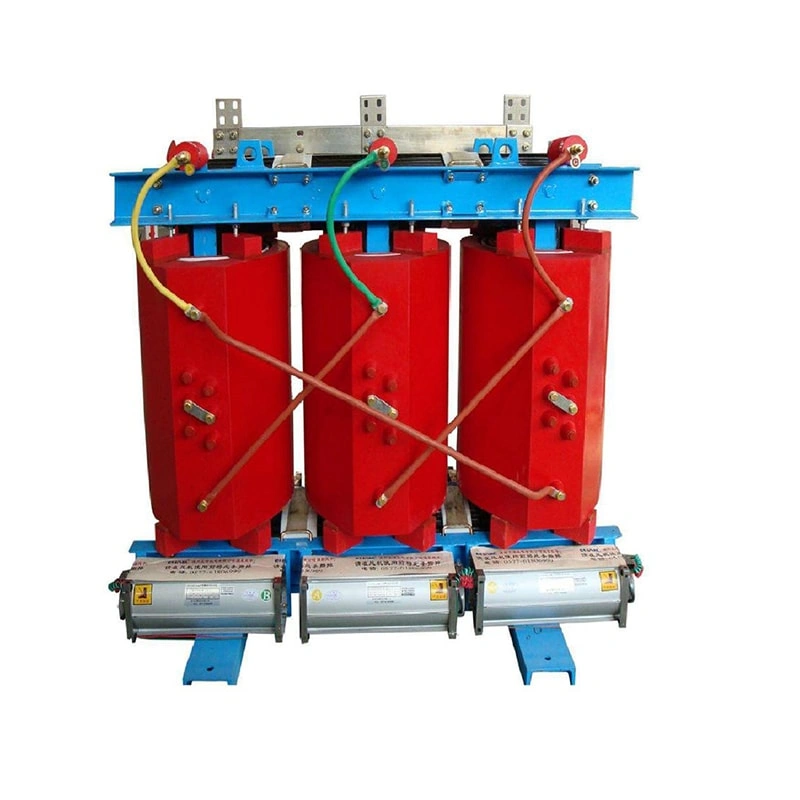

SCB10 / 11 series non-encapsulated dry-type transformer has got the advantages of safety, reliability, energy-saving, fireproof, explosion-proof and easy maintenance, and it has advanced design, reasonable structure and beautiful appearance. This type transformer is most suitable for harsh places with high fireproof requirements, big load fluctuation and dirty and humid environment, such as high buildings, airports, subways, power plants, metallurgy, hospitals, shopping centers, residential complex, petrochemical, nuclear power, nuclear submarines and other important places.
| Rated capacity (kVA) | H.V. winding (kV) |
Tapping range of high voltage (%) | L.V. winding (kV) |
Vector group | load loss (kW) |
No-load loss (kW) |
No-load current (%) |
|---|---|---|---|---|---|---|---|
| 30 | 6 6.3 6.6 10 10.5 11 |
±5% ±2x2.5% |
0.4 | Yyn11 or Dyn11 |
0.71 | 0.19 | 3.2 |
| 50 | 1.00 | 0.27 | 2.8 | ||||
| 80 | 1.38 | 0.37 | 2.6 | ||||
| 100 | 1.57 | 0.4 | 2.4 | ||||
| 125 | 1.85 | 0.47 | 2.2 | ||||
| 160 | 2.13 | 0.54 | 2.2 | ||||
| 200 | 2.53 | 0.62 | 2 | ||||
| 250 | 2.76 | 0.72 | 2.2 | ||||
| 315 | 3.47 | 0.88 | 1.8 | ||||
| 400 | 3.99 | 0.98 | 1.8 | ||||
| 500 | 4.88 | 1.16 | 1.8 | ||||
| 630 | 5.88 | 1.34 | 1.6 | ||||
| 630 | 5.96 | 1.3 | 1.6 | ||||
| 800 | 6.96 | 1.52 | 1.6 | ||||
| 1000 | 8.13 | 1.77 | 1.4 | ||||
| 1250 | 9.69 | 2.09 | 1.4 | ||||
| 1600 | 11.73 | 2.45 | 1.4 | ||||
| 2000 | 14.45 | 3.05 | 1.2 | ||||
| 2500 | 17.17 | 3.6 | 1.2 |

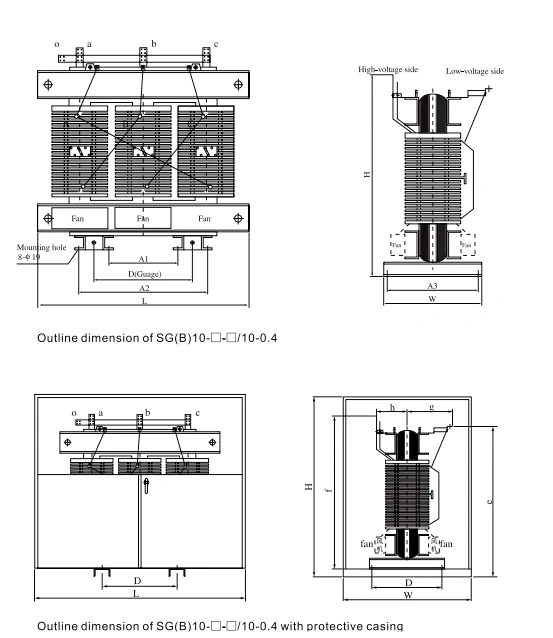

Unique ceramic insulation structure: adoption of insulating cylinder and high frequency ceramic cushion block generates no deformation.
VPI process: Nomex insulation material is first applied to high and low voltage coils, and then immersed repeatedly in H-class insulation liquid with special formula in vacuum pressure equipment. After several baking, coils are sealed externally by high-strength insulation material and then solidified at high-temperature. The high voltage coil adopts a continuous structure with high mechanical strength and good heat dissipation.
The iron core is made of silicon steel sheet with high conductivity and magnetic properties. A stepping 45 °fully-oblique structure is adopted. The winding and iron core are fixed by elastic device, thus low no-load loss and noise. Surface of iron core is treated by special process. The iron core is moderately clamped by the pull screw, and the up and low clamps are connected by pulling board and fixed with the base and the winding. The winding is fixed by elastic cushion block. This buffer structure can reduce the vibration and noise of the winding.
The outgoing line terminal is fixed on the upper part of the winding. The tap changer is in the middle, and the low-voltage line terminal is a plate-type conductive bar, which is faxed by cold pressed welding.
1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum not lower than - 25 ℃;
2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are applied, the altitude can reach 4000m;
3. The vertical inclination shall not be higher than 5 °, and no violent vibration and impact;
4. The air humidity shall not be more than 90% (+ 25 ℃);
5. working in places where there is no gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and no corrosion of electrical components;
6. Outdoor wind speed shall not exceed 35m / s.
7. If beyond the above normal use environment conditions, specially customized product is available with our company through mutual communication.
The customer shall advise main operating parameters of the transformer: Transformer capacity，Type of transformer，Input voltage level, Output voltage level，Wiring group.
Other ordering requirements
As an enterprise specializing in transformer production for 20 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
Yes, each product comes with two year(Up to 5 years)warranty to ensure the correct use of the product by the customer.
11kV-220kV Oil-immersed Power Transformer, Dry-type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution Transformer, Pad-mounted Transformer.
Yes! Our products can be customized. We have design and engineering teams, and we can customize products according to customers' drawings or requirements.
1 set.
It depends on the quantity of your order. It usually takes 20-45 days.
