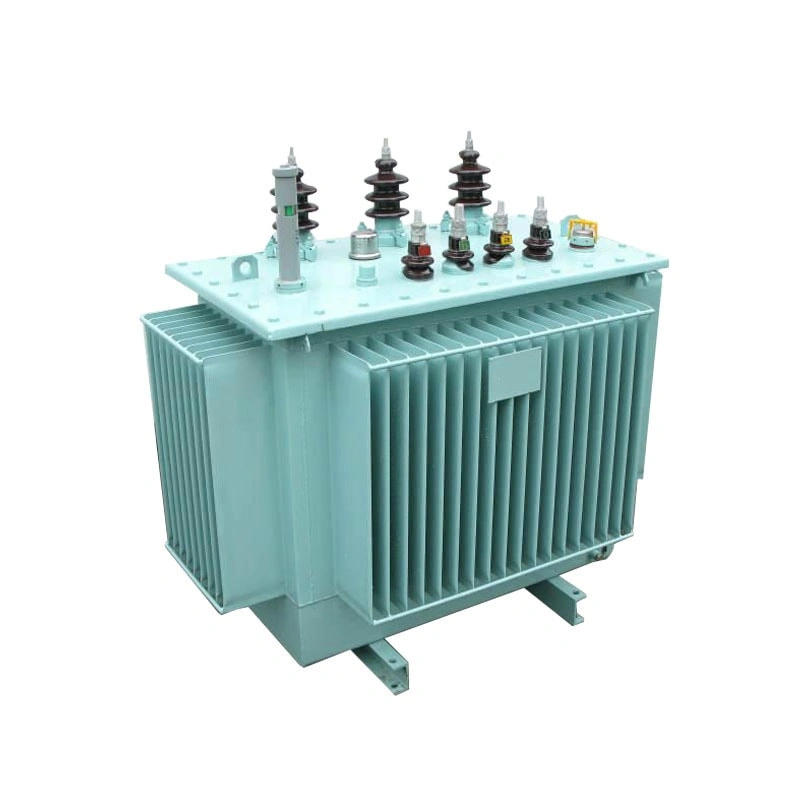

S9 / 20 kV oil immersed power transformer adopts a new type insulation structure, which improves the short-circuit resistance. The iron core is made of high-quality cold-rolled grain oriented silicon steel sheet. High and low-voltage windings are made of high-quality oxygen-free copper wire in multi-layer cylinder process structure. All fasteners are specially treated for anti loose thus obtain high mechanical strength. Corrugated oil tank shell is a permanently sealed whose own elasticity adapts to the expansion of oil. It is widely used as important equipment in power supply and distribution system, industrial and mining enterprises, agriculture and civil buildings.
| Rated Capacity （kVA） |
H.V. winding (kV) |
Tapping range of high voltage (%) | L.V. winding (kV) |
Vector Group |
No-Load Loss(W） |
Load Loss (W) |
No-load current (%) |
Short-circuit impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 30 | 20 | ±5*2.5% ±2*2.5% |
0.4 | Dyn11 | 90 | 660 | 2.1 | 5.5 |
| 50 | 130 | 960 | 2.0 | |||||
| 63 | 150 | 1145 | 1.9 | |||||
| 80 | 180 | 1370 | 1.8 | |||||
| 100 | 200 | 1650 | 1.6 | |||||
| 125 | 240 | 1980 | 1.5 | |||||
| 160 | 290 | 2420 | 1.4 | |||||
| 200 | 330 | 2860 | 1.3 | |||||
| 250 | 400 | 3350 | 1.2 | |||||
| 315 | 480 | 4010 | 1.1 | |||||
| 400 | 570 | 4730 | 1.0 | |||||
| 500 | 680 | 5660 | 1.0 | |||||
| 630 | 810 | 6820 | 0.9 | 6.0 | ||||
| 800 | 980 | 8250 | 0.8 | |||||
| 1000 | 1150 | 11330 | 0.7 | |||||
| 1250 | 1350 | 13200 | 0.7 | |||||
| 1600 | 1630 | 15950 | 0.6 | |||||
| 2000 | 1950 | 19140 | 0.6 | |||||
| 2500 | 2340 | 22220 | 0.5 |
Core
New high-quality silicon steel sheet is adopted, mainly 0.35 thick h18, h14, H12 and Z11 high-quality silicon steel sheet. We select the most suitable material according to the requirements and use conditions of customers to achieve the best design and performance of Hengfengyou transformer.
Coil
Pew, UEW, EIW, seiw, FEAI enamelled wire and glass-fibre covered wire are used for coil. The temperature resistance grade is f (155 ℃), H (180 ℃), HC (200 ℃), C (220 ℃). (the conventional temperature resistance grade is 180 ℃ of H grade).
Insulating materials
High temperature resistant insulating paper is used as insulating material, which has multiple properties of high temperature insulation, flame retardant and moisture resistance.
Connecting terminal
For small power, we use terminal strip which is beautiful in appearance and shows excellent pressure resistance, temperature resistance, flame retardant performance. For high power, we use high quality copper busbar.

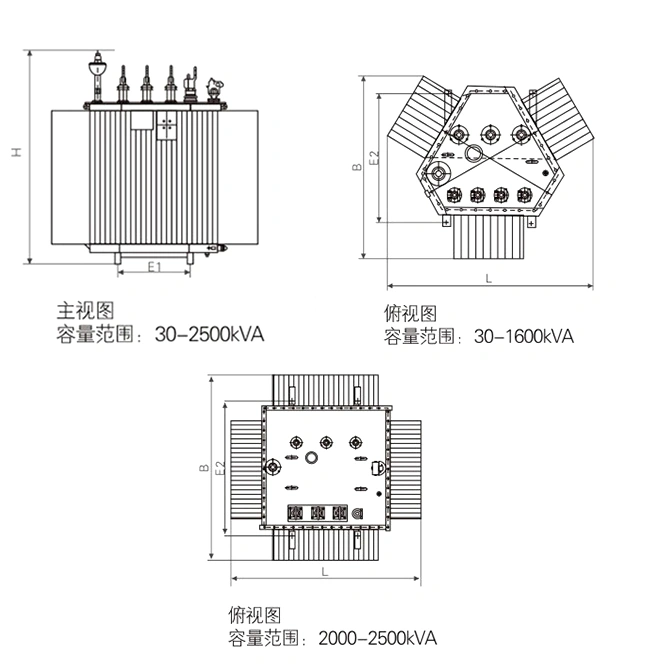

The oil tank is corrugated oil tank, with three times of primer and one time of finishing paint spraying for inside and outside surface. The product is salt fog proof, damp heat proof and fungus-proof, beautiful, durable and reliable.
1. Altitude 1000 m
2. Maximum ambient temperature + 40 ℃
3. Minimum ambient temperature - 25 ℃
4. Sunshine intensity 0.1w/cm (wind speed: 0.5m / s)
5. Maximum daily temperature difference 25K
6. Indoor relative humidity: daily average value ≤ 95%, monthly average value ≤ 90%
7. Maximum wind speed 35m / S (Note: wind speed refers to the average wind speed during 10min 10m from the ground)
8. Load with 10 mm ice cover and 17.5 M / s wind speed
9. Earthquake resistance
The horizontal acceleration on the ground is 0.2g; and the vertical acceleration is 0.1g. The method of resonance, sine and beat wave test is adopted; 5 times of excitation, 5 waves each time, 2s interval each time. The safety factor shall not be lower than 1.67.
10. Rated frequency : 50Hz
11. Installation location: indoor / outdoor
12. Specific creepage distance of external insulation: indoor ≥ 20 mm / kV Outdoor ≥ 30 mm / kV
13. System short-circuit current: 20kV not more than 20KA
Clients need advise main parameters of the transformer like capacity, input voltage, output voltage and connection group in inquiry.
Other custom requirement.
As an enterprise specializing in transformer production for 20 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
Yes, each product comes with two year(Up to 5 years)warranty to ensure the correct use of the product by the customer.
11kV-220kV Oil-immersed Power Transformer, Dry-type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution Transformer, Pad-mounted Transformer.
Yes! Our products can be customized. We have design and engineering teams, and we can customize products according to customers' drawings or requirements.
1 set.
It depends on the quantity of your order. It usually takes 20-45 days.
