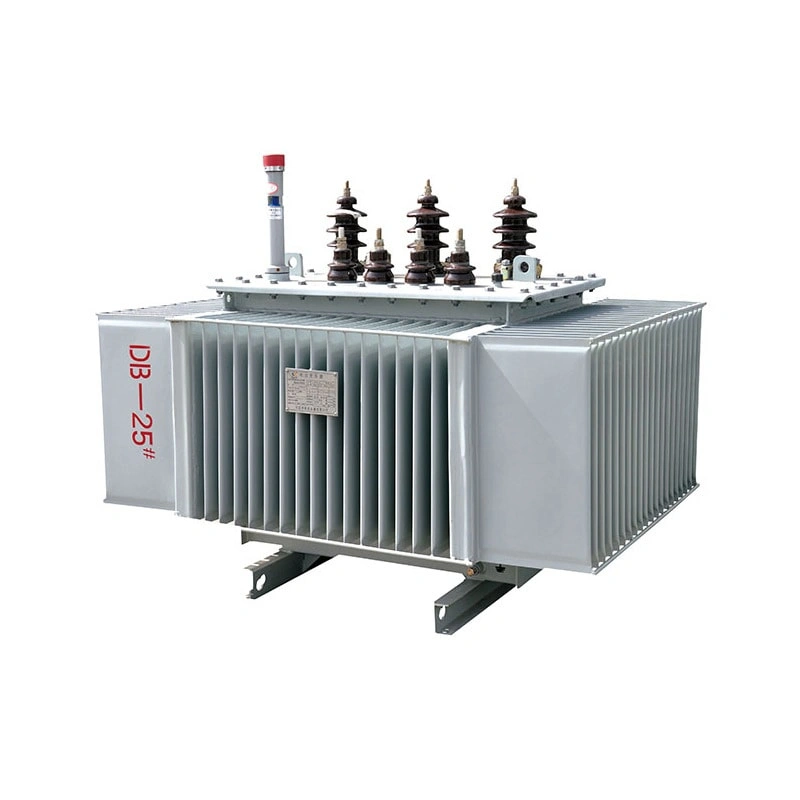

On the basis of S9 series, the no-load loss of S11 series products is reduced by 30% on average, and the no-load current is 70-80% lower than that of S9. The core is made of imported high magnetic conductivity, low loss, cold-rolled high-quality silicon steel sheet, which reduces the no-load loss and saves energy significantly.
High safety and reliability, advanced structure, small volume, light weight, low noise, low temperature rise, anti-corrosion, reliable anti leakage measures, to prevent oil leakage.
| Rated Capacity （kVA） | H.V. winding (kV) | Tapping range of high voltage (%) | L.V. winding (kV) | Vector Group | No-Load Loss(W) | Load Loss (W) | No-load current (%) | Short-circuit impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 50 | 35 38.5 | ±5% ±2x2.5% | 0.4 | Dyn11 Yyn0 | 130 | 1200/1140 | 1.3 | 6.5 |
| 100 | 185 | 2010/1910 | 1.1 | 6.5 | ||||
| 125 | 215 | 2370/2260 | 1.1 | 6.5 | ||||
| 160 | 225 | 2820/2680 | 1 | 6.5 | ||||
| 200 | 270 | 3320/3160 | 1 | 6.5 | ||||
| 250 | 320 | 3950/3760 | 0.95 | 6.5 | ||||
| 315 | 385 | 4750/4530 | 0.95 | 6.5 | ||||
| 400 | 465 | 5740/5470 | 0.85 | 6.5 | ||||
| 500 | 545 | 6910/6580 | 0.85 | 6.5 | ||||
| 630 | 665 | 7860 | 0.65 | 6.5 | ||||
| 800 | 785 | 9400 | 0.65 | 6.5 | ||||
| 1000 | 920 | 11500 | 0.65 | 6.5 | ||||
| 1250 | 1120 | 13900 | 0.6 | 6.5 | ||||
| 1600 | 1350 | 16600 | 0.6 | 6.5 | ||||
| 2000 | 1590 | 19700 | 0.55 | 6.5 | ||||
| 2500 | 1890 | 23200 | 0.55 | 6.5 |
Core
All of them are made of high quality grain oriented cold-rolled silicon steel sheets. The iron core is of multi-stage stepped structure, with three or five joints, low air loss and low noise; The coil core is directly wound by special equipment, without joint and angle weight, reducing magnetic resistance and low air loss; The amorphous alloy transformer core is a kind of higher quality core material. Compared with the traditional silicon steel sheet, the average air loss is reduced by 72%, and the no-load current is 50%.
Coil
It is made of high-quality QQ acetal enamelled round copper wire and flat copper coin drawn by oxygen-free copper rod. Its forms include cylinder type, continuous type, new spiral type, split type, etc. it has sufficient electrical strength, mechanical strength and heat dissipation capacity. In order to increase the short-circuit resistance of transformer, higher quality self-adhesive transposed conductor can be used. The coil is made of self-adhesive acetal enamelled flat wire. After being wound into a coil, the enamelled flat wires are mutually bonded to form a rigid coil, which can withstand greater bending stress, thus enhancing the short-circuit resistance of the transformer. The biggest characteristic of the self-adhesive transposed conductor is that it can reduce the loss of the transformer. Because of the multi split conductor and transposition, it can greatly reduce the eddy current loss and circulation loss, reduce the temperature rise of the hot spot of the winding, and make the temperature distribution of the whole winding more uniform.
Fuel tank
It is welded with high-quality steel plate and has elliptical and rectangular structure. The radiator element is chip radiator, expansion radiator or corrugated oil tank. The oil tank has reliable sealing test in the factory. After pickling and phosphating treatment, the inner and outer surfaces are sprayed with three times of primer and one time of finish paint. The product is salt fog proof, damp heat proof and mould proof, which can meet the requirements of metallurgy, petrochemical system and humidity . special requirements for polluted areas, beautiful and reliable operation.
1、Installation location: outdoor or indoor;
2、Altitude: less than 1000m;
3、Ambient temperature: - 25 ℃ ~ + 40 ℃;
4、Maximum relative humidity: 95% (25 ℃);
5、Seismic capacity: the ground horizontal acceleration is 0.3g, the vertical ground acceleration is 0.15g, at the same time, it acts on three consecutive sine waves, and the safety factor ≥1.67;
6、Able to work normally in all-weather outdoor environment;
7、This equipment has some functions of dustproof, antifouling, shockproof and shockproof.
Customers need to provide the main parameters of transformer: capacity, input voltage, output voltage level, wiring group, etc.
Other order requirements
As an enterprise specializing in transformer production for 20 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
Yes, each product comes with two year(Up to 5 years)warranty to ensure the correct use of the product by the customer.
11kV-220kV Oil-immersed Power Transformer, Dry-type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution Transformer, Pad-mounted Transformer.
Yes! Our products can be customized. We have design and engineering teams, and we can customize products according to customers' drawings or requirements.
1 set.
It depends on the quantity of your order. It usually takes 20-45 days.
