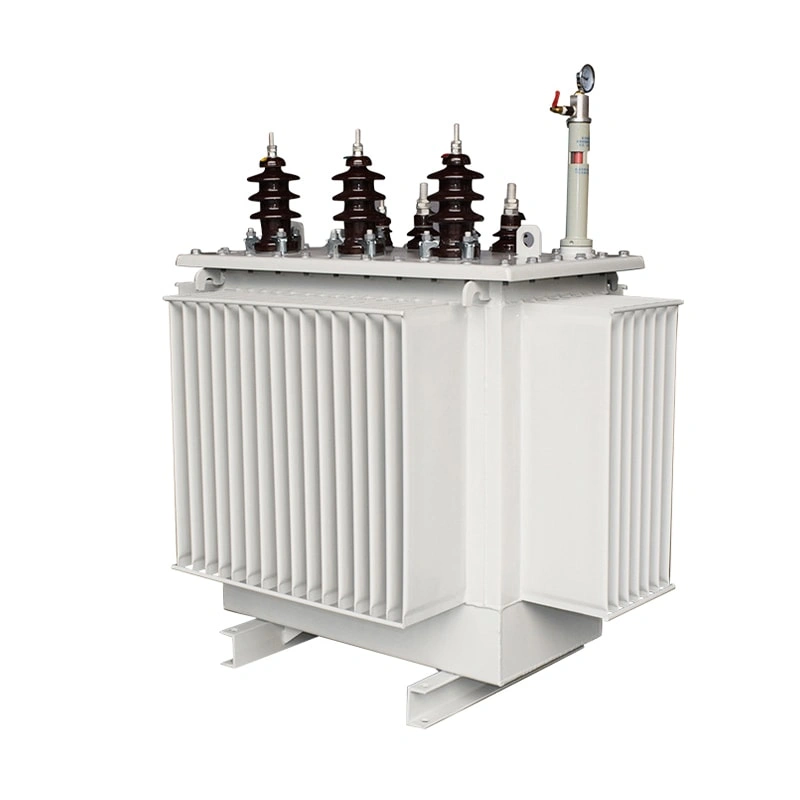

This product conforms to the national standard gb1094.1-2013 power transformer and GB / t6451-2015 three phase oil immersed power transformer technical parameters and requirements. This product has adopted a series of major reforms in material, technology and structure, so that the electrical performance of the product can reach the advanced level of similar products. It has the characteristics of high efficiency and low consumption, can save a lot of power consumption and operation costs, and has remarkable social benefits. It is a new product promoted by the state. It is also one of the more popular products for users.
| Type | Rated Capacity （kVA） |
H.V. winding (kV) |
L.V. winding (kV) |
Vector Group | Short-circuit impedance (%) |
No-Load Loss(W) |
No-load current (%) |
|---|---|---|---|---|---|---|---|
| S(F)11-6300/66 | 6300 | 35 38.5 |
3.15 3.3 6.3 6.6 10.5 |
YNd11 | 9 | 7.3 | 34.2 |
| S(F)11-8000/66 | 8000 | 8.9 | 40.5 | ||||
| S(F)11-10000/66 | 10000 | 10.5 | 47.8 | ||||
| S(F)11-12500/66 | 12500 | 12.4 | 56.8 | ||||
| S(F)11-16000/66 | 16000 | 15 | 69.8 | ||||
| S(F)11-20000/66 | 20000 | 17.6 | 84.6 | ||||
| S(F)11-25000/66 | 25000 | 20.8 | 100 | ||||
| S(F)11-31500/66 | 31500 | 24.6 | 120 | ||||
| S(F)11-40000/66 | 40000 | 29.4 | 141 | ||||
| S(F)11-50000/66 | 50000 | 35.2 | 167 | ||||
| S(F)11-63000/66 | 63000 | 41.6 | 198 |

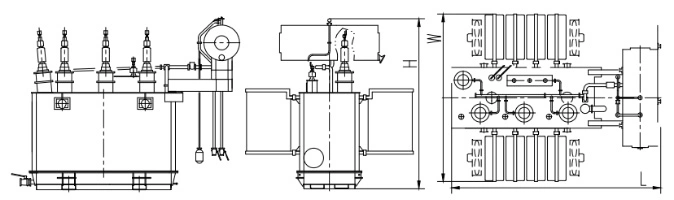

Core
All are made of high-quality grain oriented cold-rolled silicon steel sheet, with full oblique and no hole binding structure. The iron core is of multi-stage stepped shape, with three or five joints, low air loss and low noise. The rolled iron core is directly wound by special equipment, without joints and angle weight, reducing magnetic resistance and low air loss. The amorphous alloy transformer core is a kind of higher quality iron core material, with an average drop compared with the traditional silicon steel sheet Low air loss 72%, no-load current 50%.
Coil
It is made of high-quality QQ acetal enamelled round copper wire and flat copper coin drawn by oxygen-free copper rod. Its forms include cylinder type, continuous type, new spiral type, split type, etc. it has sufficient electrical strength, mechanical strength and heat dissipation capacity. In order to increase the short-circuit resistance of transformer, higher quality self-adhesive transposed conductor can be used. The coil is made of self-adhesive acetal enamelled flat wire. After being wound into a coil, the enamelled flat wires are mutually bonded to form a rigid coil, which can withstand greater bending stress, thus enhancing the short-circuit resistance of the transformer. The biggest characteristic of the self-adhesive transposed conductor is that it can reduce the loss of the transformer. Because of the multi split conductor and transposition, it can greatly reduce the eddy current loss and circulation loss, reduce the temperature rise of the hot spot of the winding, and make the temperature distribution of the whole winding more uniform.
Fuel tank
It is welded with high-quality steel plate and has elliptical and rectangular structure. The radiator element is chip radiator, expansion radiator or corrugated oil tank. The oil tank has reliable sealing test in the factory. After pickling and phos-phating treatment, the inner and outer surfaces are sprayed with three times of primer and one time of finish paint. The product is salt fog proof, damp heat proof and mould proof, which can meet the requirements of metallurgy, petrochemical system and humidity, special requirements for polluted areas, beautiful and reliable operation.
Maximum temperature: + 40 ℃;
Minimum temperature: - 45 ℃;
Average temperature in the hottest month: + 30 ℃;
Annual average temperature of the hottest year: + 20 ℃;
Altitude: ≤ 1000m;
Pollution level: Level III;
Seismic intensity: 8;
Power supply voltage waveform: approximate sine wave;
Note: if the above service conditions are exceeded, please indicate when ordering for special consideration.
Customers need to provide the main parameters of transformer: capacity, input voltage, output voltage level, wiring group, etc.
Other order requirements
As an enterprise specializing in transformer production for 20 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
Yes, each product comes with two year(Up to 5 years)warranty to ensure the correct use of the product by the customer.
11kV-220kV Oil-immersed Power Transformer, Dry-type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution Transformer, Pad-mounted Transformer.
Yes! Our products can be customized. We have design and engineering teams, and we can customize products according to customers' drawings or requirements.
1 set.
It depends on the quantity of your order. It usually takes 20-45 days.
We always adhere to technology as our guiding principle, upholding the spirit of "dedication, professionalism, and focus," to provide meticulously crafted tools and serve millions of users worldwide.
We have established a professional R&D team to continuously optimize our products, save energy, and adopt new manufacturing processes to tailor high-performance, cost-effective equipment for our customers.
We have more than 20 years to produce different kinds of transformers.
The factory's 6S management system improves efficiency, ensures quality, and safeguards the quality of the products the company outputs.
As a high-tech enterprise integrating R&D, production and sales, we ensure product quality while maximizing cost advantages for our customers.
We have a strong supply chain and after-sale service.
