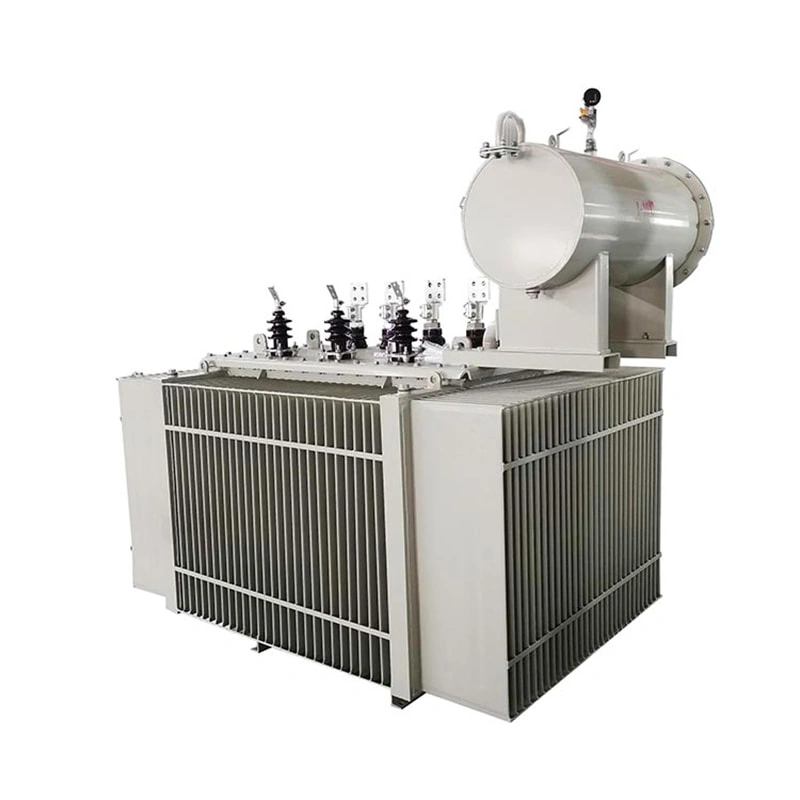

- Input voltage: 13.8kV - Output voltage: 0.4kv 0.416 kv 0.420kv 0.440kv 0.480kv - Capacity: 30-2500 kva - Frequency: 50/60 HZ - Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements Series: S11-M USES: DisDistribution Country of origin: China Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram Certification: ISO9001、CB、CE、KEMA
-High voltage copper wire winding technology to improve lightning resistance performance
-Low voltage foil winding technology, high-quality A-E grade insulation material insulation
-Low magnetic leakage, high mechanical strength, and strong short-circuit resistance
-The material of the iron core is high-quality cold-rolled grain oriented silicon steel sheets with mineral oxide insulation (from Baosteel and Wuhan Iron and Steel Group in China)
-By controlling the process of cutting and stacking silicon steel sheets, the loss level, no-load current, and noise are minimized
Low loss and noise: the core plate adopts the laminating form of high-performance silicon steel sheet and five layer step full oblique joint, which can provide low no-load loss and noise. The oil tank adopts the technology of magnetic shielding and copper shielding. According to the different positions of the leakage magnetic field, measures are taken to reduce the eddy current loss, which reduces the load loss and fundamentally solves the local overheating of the transformer.
Safe operation: the partial discharge capacity of the product is kept below 100pC. In order to prolong the service life of the transformer and improve its short circuit resistance, the cooling structure is designed reasonably. When the transformer is short circuited, the mechanical stress of the winding conductor is low, and there are other short-circuit withstand measures and strict production process as guarantee.
Reliable operation: at present, oil immersed power transformer usually controls on load operation by limiting the average temperature rise of winding to realize the thermal life of transformer. In the development process, the control of hot spot temperature is more important than that of average temperature for large capacity UHV Transformer. For transformers with natural oil circulation, the average temperature rise of oil may meet the requirements, while the temperature rise of hot spot may exceed its limit. Therefore, it is necessary to calculate and strictly control the hot spot temperature rise of large capacity transformer.
Easy installation and maintenance: in order to reduce the workload field installation, all accessories are pre installed before leaving the factory. The secondary cable is laid on the main body of the transformer before leaving the factory and led to the terminal box and control box. Most large capacity transformers adopt natural oil circulation and air cooling, and maintain 70% cooling capacity when the fan stopped.
1. The maximum ambient air temperature shall not exceed 40℃, and the minimum shall not below - 25℃;
2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;
3. The vertical inclination is no more than 5°, and no violent vibration and impact;
4. The air humidity is not more than 90% (+ 25℃);
5. No gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and no corrosion of electrical components;
6. Outdoor wind speed shall not exceed 35m /s.
7. If service conditions beyond the above, specially customized product is available.
The customer needs provide main parameters of the transformer: capacity, input and output voltage, wiring group, etc.
Other customer requirements
As an enterprise specializing in transformer production for 20 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
Yes, each product comes with two year(Up to 5 years)warranty to ensure the correct use of the product by the customer.
11kV-220kV Oil-immersed Power Transformer, Dry-type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution Transformer, Pad-mounted Transformer.
Yes! Our products can be customized. We have design and engineering teams, and we can customize products according to customers' drawings or requirements.
1 set.
It depends on the quantity of your order. It usually takes 20-45 days.
