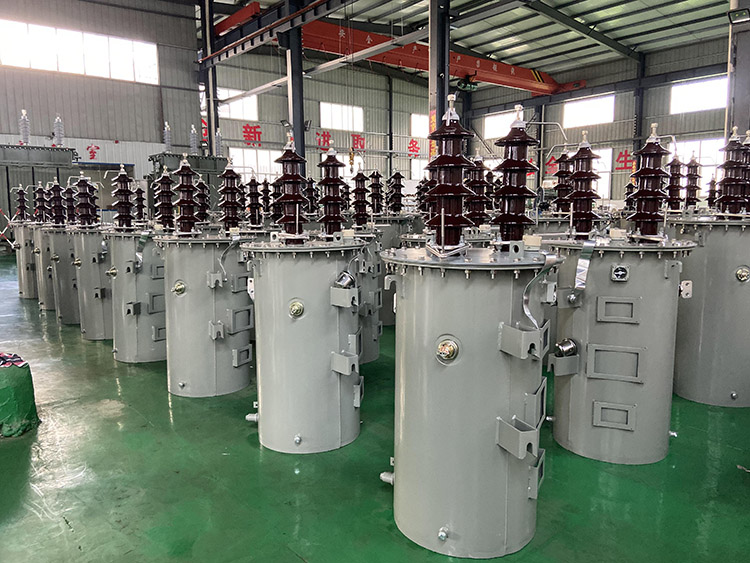

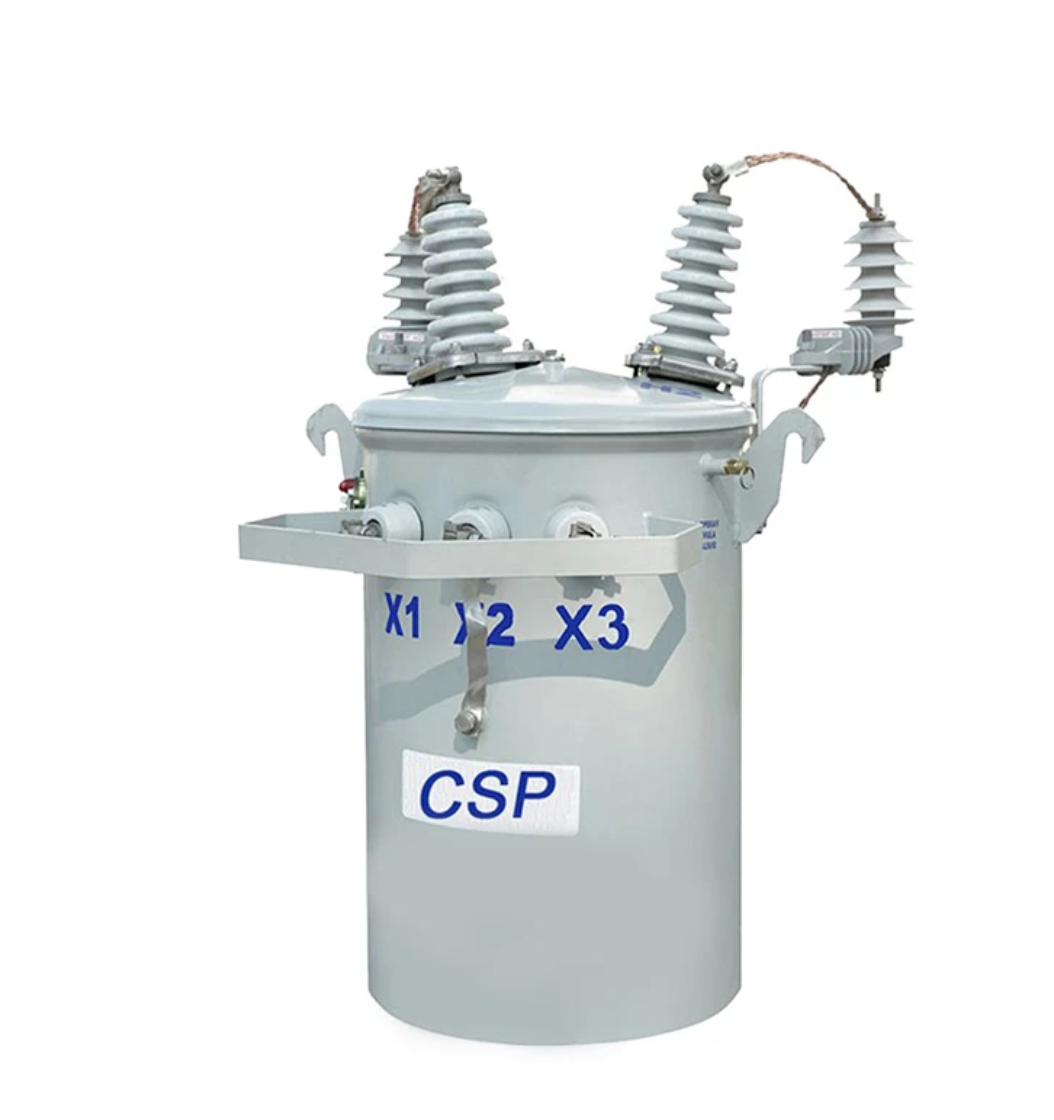

Pole Mounted Single Phase Transformer overview - Low loss, energy saving,The maximum voltage is 36kV and the maximum capacity is 500KVA - Actual measurement is better than ANSI/IEEE and IEC standards, DOE2016, UL cUL CSA certification. - High efficiency and energy saving roll iron core structure design, use the pole hanging installation. - More than 50 countries and regions around the world run verification of high reliability. - It is mainly used in suburban distribution network, agricultural production and civil building power supply and distribution system -The products have been successfully sold to the Philippines, Australia, the United States, Japan, South America and other countries and regions - Executive standards: IEEE C57, ANSI C57, IEC76, GB10318
- High voltage copper wire winding technology to improve lightning resistance performance
- Low voltage foil winding technology, high-quality A-E grade insulation material insulation
- Low magnetic leakage, high mechanical strength, and strong short-circuit resistance
- The material of the iron core is high-quality cold-rolled grain oriented silicon steel sheets with mineral oxide insulation (from Baosteel and Wuhan Iron and Steel Group in China)
- By controlling the process of cutting and stacking silicon steel sheets, the loss level, no-load current, and noise are minimized
- Input volt：34.5kv-19.92kv/13.8kv-7.957kv/13.2kv-7.62kv/12.47kv-7.2kv or others
- Output volt：120-240/240-480/347/600V or others
- Capacity：5kva-333-500KVA,The maximum voltage is 36kV and the maximum capacity is 500KVA
- Remark：Voltage, capacity, frequency, connection group and loss can be customized according to customer requirements
| Tachnical Data for Single-Phase Pole Mounted Distributation Transformer | ||||||||
|---|---|---|---|---|---|---|---|---|
| Power (KVA) | High Voltage (V) | Low Voltage (V) | Loss(W) | Dimension (mm) | Weight (kg) | |||
| No-load Loss | On-load Loss | W | D | H | ||||
| 5kva | 34500/ 19920 13800/ 7957 13200/ 7620 12470/ 7200 or others |
120- 240 480 240- 347 600 |
19 | 75 | 465 | 485 | 855 | 92 |
| 10kva | 36 | 120 | 500 | 525 | 885 | 150 | ||
| 15kva | 50 | 195 | 520 | 565 | 905 | 210 | ||
| 25kva | 80 | 290 | 560 | 590 | 935 | 258 | ||
| 37.5kva | 105 | 360 | 610 | 625 | 935 | 340 | ||
| 50kva | 135 | 500 | 635 | 675 | 1035 | 395 | ||
| 75kva | 190 | 650 | 745 | 840 | 1035 | 480 | ||
| 100kva | 210 | 850 | 770 | 965 | 1135 | 530 | ||
| 167kva | 350 | 1410 | 795 | 890 | 1335 | 680 | ||
As an enterprise specializing in transformer production for 20 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.
Yes, each product comes with two year(Up to 5 years)warranty to ensure the correct use of the product by the customer.
11kV-220kV Oil-immersed Power Transformer, Dry-type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution Transformer, Pad-mounted Transformer.
Yes! Our products can be customized. We have design and engineering teams, and we can customize products according to customers' drawings or requirements.
1 set.
It depends on the quantity of your order. It usually takes 20-45 days.
We always adhere to technology as our guiding principle, upholding the spirit of "dedication, professionalism, and focus," to provide meticulously crafted tools and serve millions of users worldwide.
We have established a professional R&D team to continuously optimize our products, save energy, and adopt new manufacturing processes to tailor high-performance, cost-effective equipment for our customers.
We have more than 20 years to produce different kinds of transformers.
The factory's 6S management system improves efficiency, ensures quality, and safeguards the quality of the products the company outputs.
As a high-tech enterprise integrating R&D, production and sales, we ensure product quality while maximizing cost advantages for our customers.
We have a strong supply chain and after-sale service.
